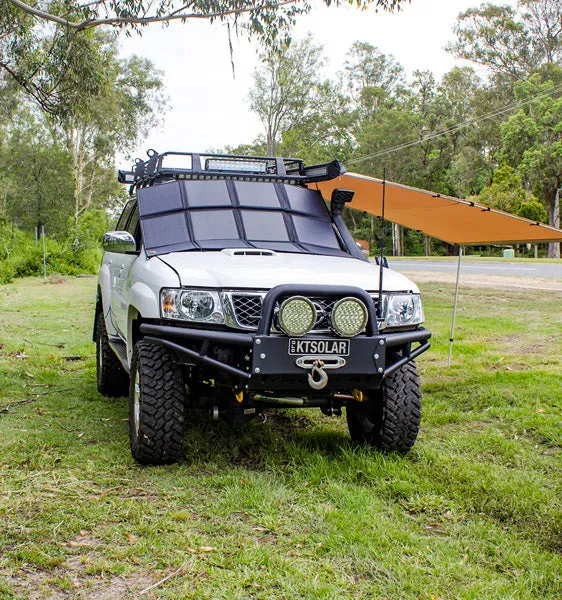

The 200W, 12V Portable Solar Blanket is a compact, light-weight solution to your solar needs. Whether camping, caravanning, or four-wheel driving off-road, KT Solar blankets are the perfect solution for maintaining batteries to power portable fridges, camping lights, air-compressors and other 12V equipment.

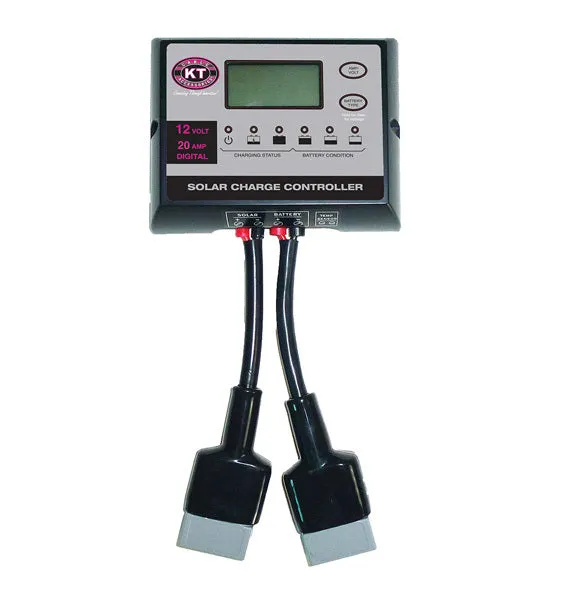

The solar blanket is suitable to maintenance charging of gel, wet, AGM, calcium & lithium batteries and includes a 20AMP 12V PWM solar charge controller.
Features:

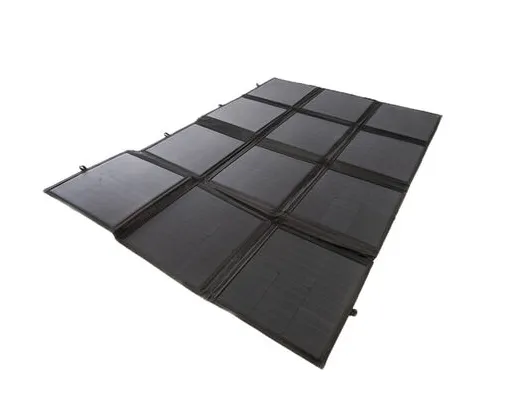

- One-Piece Easy-Fold Weather-Proof 200 Watt Solar Blanket with 12 solar cells (4 x horizontal, 3 x vertical)

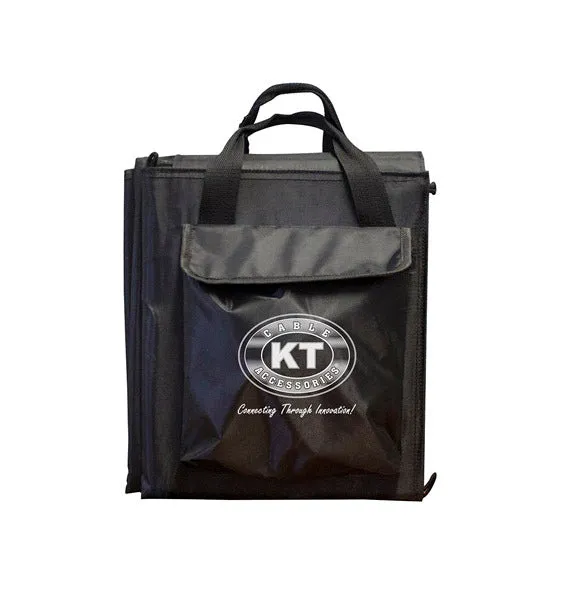

- Small, compact design for easy transportation and storage
Dimensions & Weight:
- Dimensions Folded (mm): 400 x 400 x 135
- Dimensions Unfolded (mm): 1526 x 1140 x 5
- Panel Weight: 7.53Kg
Warranty & Guarantees:
- 2 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Program
Specifications:
| Power Tolerance | 3% |
| Maximum Power (Pmax) | 200Wp |
| Maximum Power Voltage (Vmp) | 18V |
| Maximum Power Current (Imp) | 11.11A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 21V |
| Short Circuit Current (Isc) | 11.54A |
| Operating Temperature | -40°C to 85°C |
| Product Application | Class A |
| Max System Voltage | 600V DC |
Model No. KT70713 Automotive Electrical & 4WD Accessories
