- Appliance Monitoring: This meter is equipped with 3 80A sensors, which can accurately monitor air conditioning, stoves, water heaters, washing machines, dryers, etc.
- Energy Monitoring: The 3 phase ammeter can measure voltage, current and power factor, supports for ZigBee 3.0 technology, 2.4GHz external antenna frequency.
- Real Time Data: Need to be used in conjunction with the gateway to monitor energy usage through mobile APP, providing 2s data with an accuracy of ±2%.
- Easy Operation: This 3 phase clamp meter is lightweight and compact, and can monitor electricity consumption by connecting the clamp to the power cord.
- Household Use: The smart KWH meter is 3 phase 4 wire design, suitable for household use, real time monitoring of actual electricity, greatly saving energy.
Item Type: 3 Phase Energy Meter
Model: PC 1-Z-80-TY
For ZigBee: 2.4GHz IEEE 802.15.4
For ZigBee Profile: For ZigBee 3.0
Operating Frequency: 2.4GHz External Antenna
Output Power: 20dBm
CT Current: 3 x 80A
Connection Voltage: 100-240V
Calibration Measuring Accuracy: 100W (within ±2W),>100W (within ±2%)
Temperature: -20-55℃
Humidity: 90% No Condensation

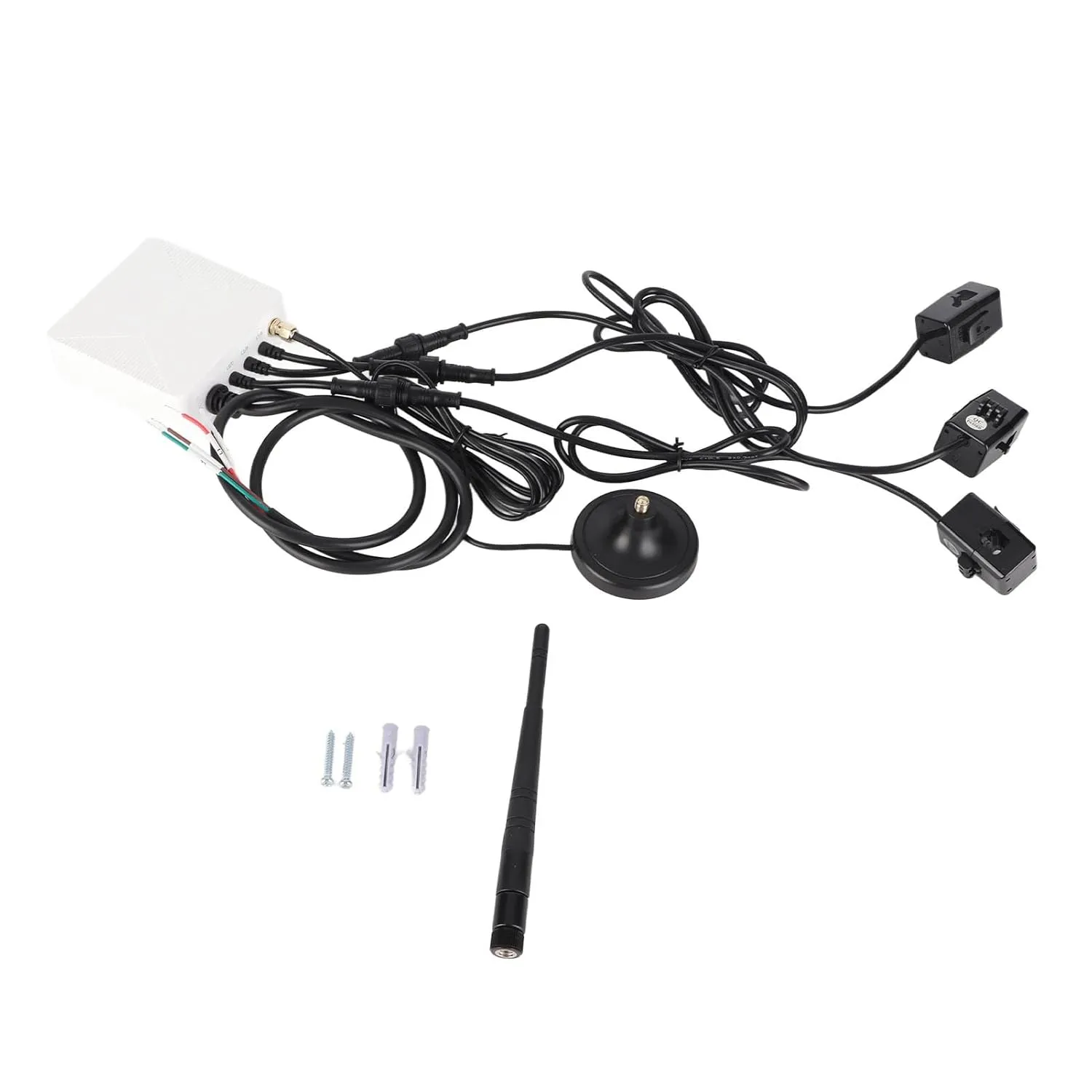

Package List：
1 x Smart Meter
1 x User Manual
1 x Antenna
1 x Antenna Base
4 x Accessories
Note:
The power clamp must be installed and repaired by a qualified person, do not touch the terminal of the device during the test, and turn off all power to the device before installation to ensure your security.
- Package Dimensions : 8.27 x 5.51 x 2.36 inches; 1.3 Pounds
- Date First Available : September 29, 2024
- Manufacturer : Locadence
- Country of Origin : China
