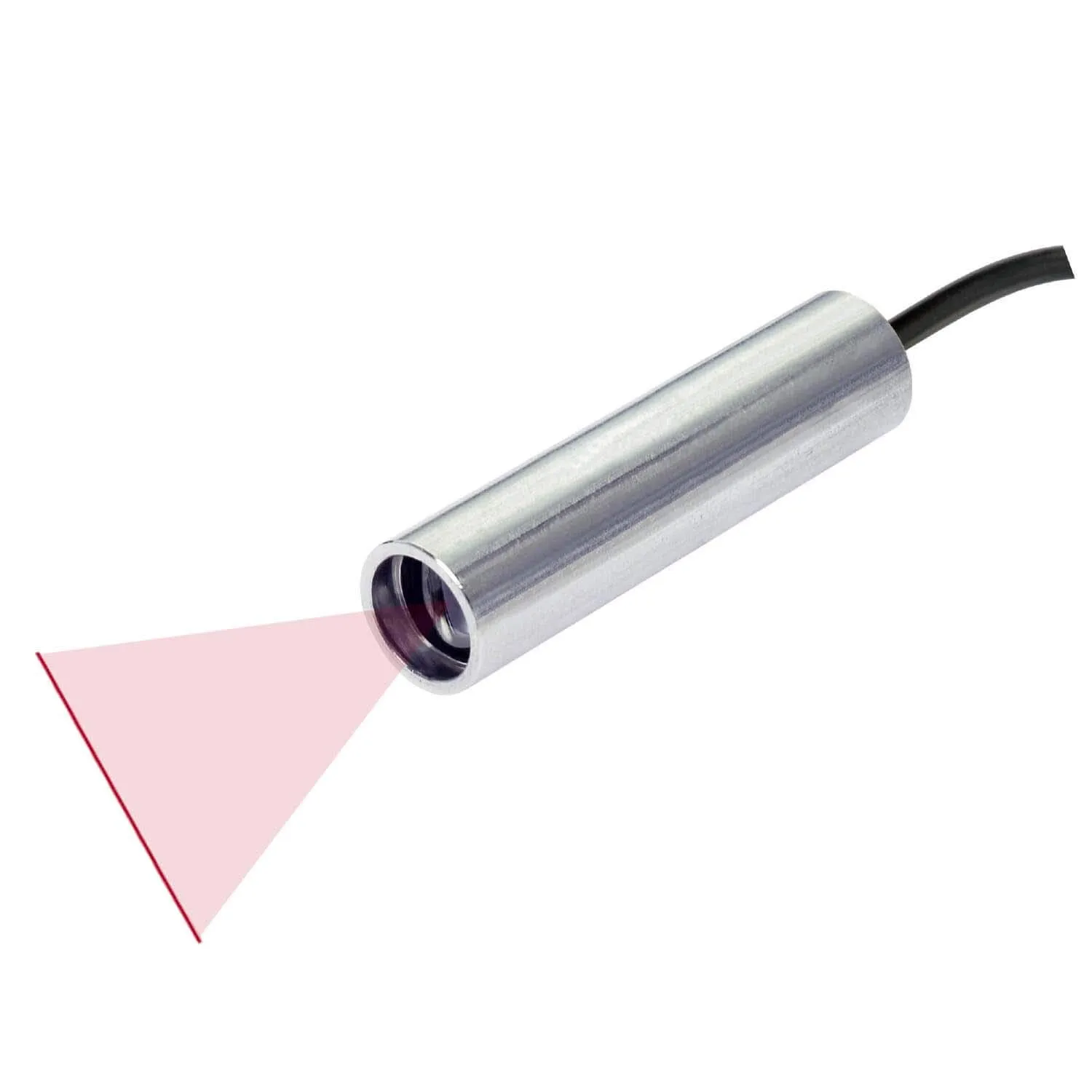

- Fan Angle 45° Uniform Line. Line length: 8.28cm at 10cm (3.25" at 4 inches). High precision red line laser module in compact size. Built with high precision glass line lens and glass laser collimating lens for machine vision and laser alignment application.
- Focus range: 10cm. Recommended working range: 0~19cm (0~7.48 inches). Best performance working range: 5.5~15cm (2.17~5.91 inches).
- Wavelength : 630~645 nm. Laser power output: Class I, less than 0.39mW (measured by 7mm aperture stop at the position of 10 cm, tested according to the standard IEC-60825-1.)

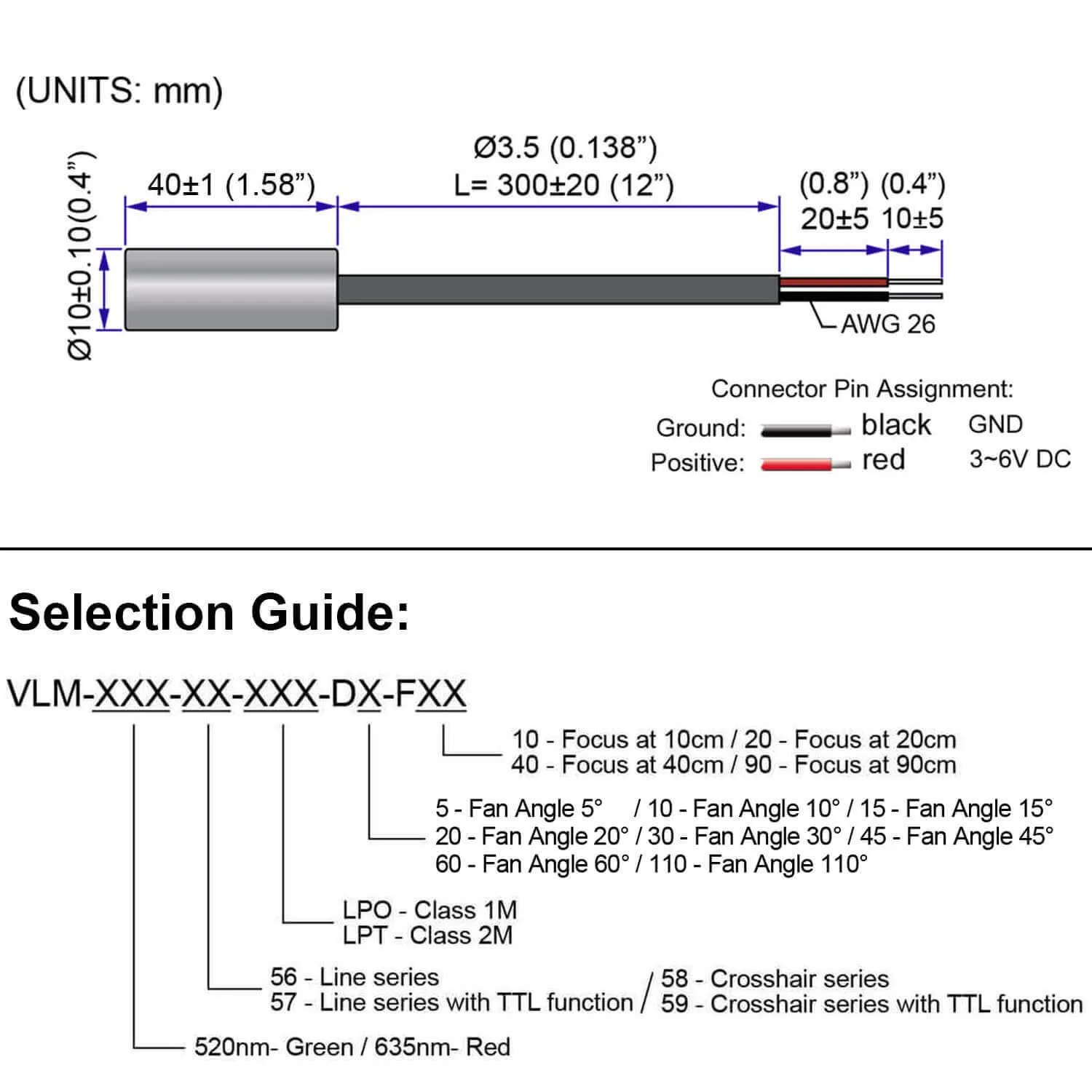

- Dimensions : Ø10 x 40 mm (Ø0.39" x 1.575"). Weight: 22g (0.776 oz.)
- 3~6 VDC operation. Connection type : Lead wire. This laser module is not supposed to be sold with additional power source, power supply, or wiring terminals. Because modules are simply components, and it means that you have to wire it to your own power source by yourself.
The newly developed glass line lens come with various fan angles and they produce high quality uniform laser line.
Ideal for automation, machine vision, image processing, digital data acquisition, counting, precision 3D scannner and science & medical application.
They are available at 10cm, 20cm, 40cm, 90cm focus length; red, green wavelength; Class I, and Class II laser class to cover within 1 meter range task.
Please search by using the keywords Quarton VLM-520-56, Quarton VLM-635-56, Quarton VLM-520-58, or Quarton VLM-635-58 to find out more product options on Amazon.
APPLICATIONS: ideal for
Machine vision.
Automation industry.
Image processing.
Medical & Science.
Scanning.
Precision 3D scanner.
Counting.
Measurement.
- Is Discontinued By Manufacturer : No
- Package Dimensions : 5.12 x 4.25 x 0.63 inches; 0.71 ounces
- Date First Available : February 24, 2020
- Manufacturer : Quarton inc.
- Country of Origin : Taiwan
