OPTOTRONIC Programmable Compact LED Drivers

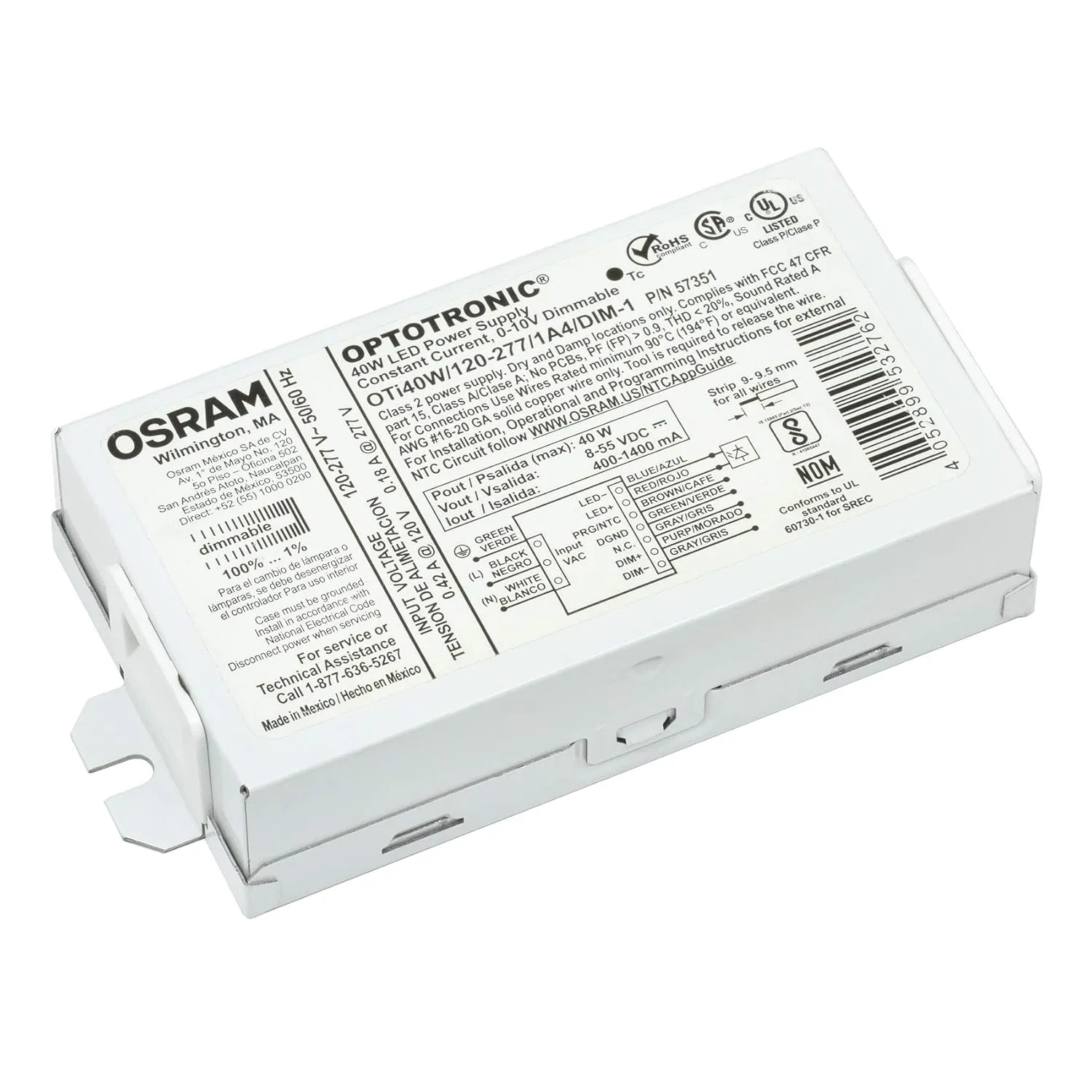

OSRAM 57351 OPTOTRONIC OTi40W/120-277/1A4 DIM-1 40W Constant Current, 0-10V Dimmable LED Driver

Product Features

• Programmable Features:
• • Output current
  • Dimming level
  • Dim-to-off
  • Soft Start
  • LED thermal protection
  • Vaux (12/20/24V)
  • Constant lumen output
  • End-of-life indicator
• Input Voltage: 120-277V ( /- 10%)
• Frequency Range: 50-60 Hz ( /- 5%)
• Max. Output Power (W): 40W
• Dimming Control: 0-10V (Isolated)
• Dimming Range: 1-100%
• Output Voltage (VDC): 8-55VDC
• Output Current (mA): 400-1400mA (1mA Step), Default 700mA
• Product Dimensions (L x W x H): 5.0" x 2.4" x 1.2"
• Product Weight: 7.8oz
• Quantity: 1
• UL Environmental Rating: Dry and Damp

Product Family Features

• Universal input voltage - 120–277VAC 50/60Hz
• UL Class 2 output for safe operation
• Protection against line voltage on 0-10 V dimming wires
• AUX output models available
• Custom programmable with 1mA resolution to perfectly match LED load and maximize performance
• Programming does not require powering up or connecting the power supply to AC line voltage
• Wide output current and voltage range
• Available in dimming to 1% with 0–10 V dimmers
• Integrated OEM programmable features include: constant lumen maintenance, end-of-life indication, LED thermal protection, Vaux (12V/20V/24V), soft start, and dim-to-off
• Available with mounting feet (F-style) or PEM studs (J-style) to simplify installation
• Conforms UL SREC for NTC based thermal protection

Areas of Application

• Downlights, In-grade fixtures, Recessed troffer, Wall Washing

• Product Dimensions ‏ : ‎ 5 x 2.4 x 1.2 inches; 7.8 ounces
• Date First Available ‏ : ‎ September 23, 2020
• Manufacturer ‏ : ‎ OSRAM
• Country of Origin ‏ : ‎ Mexico
