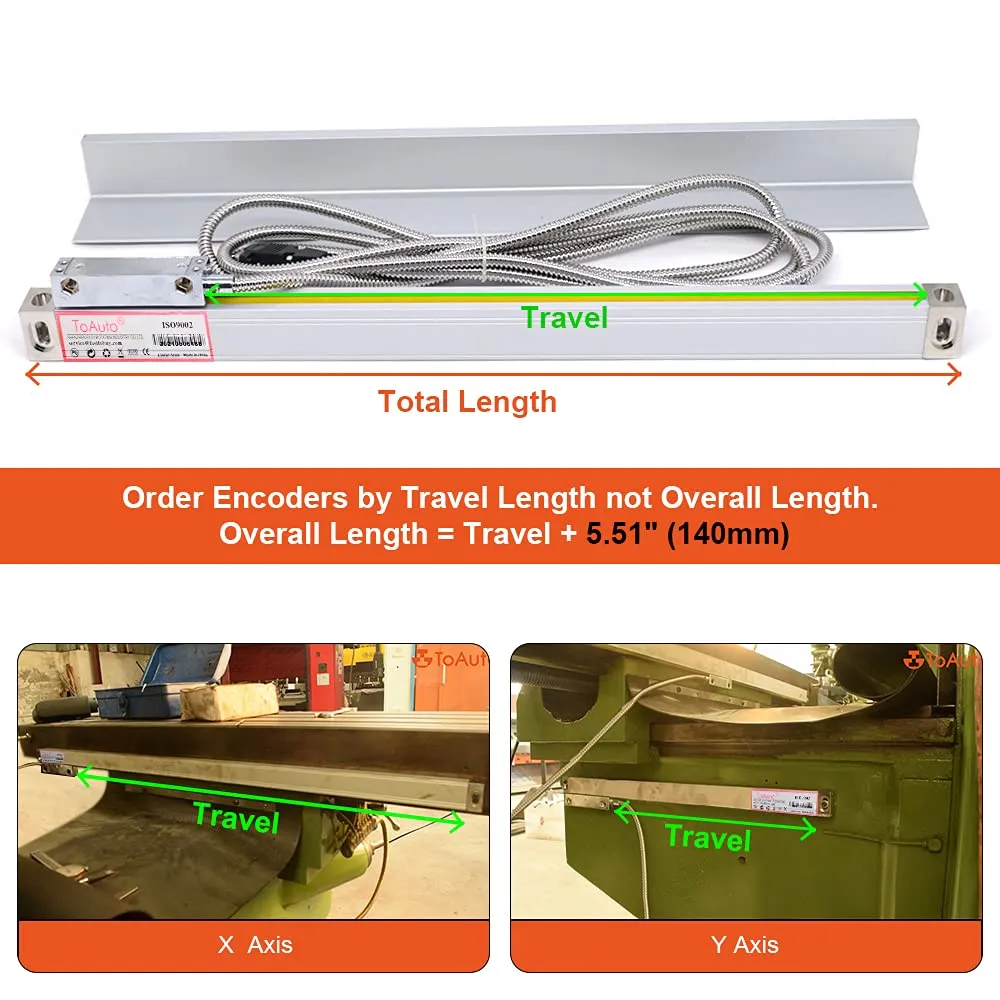

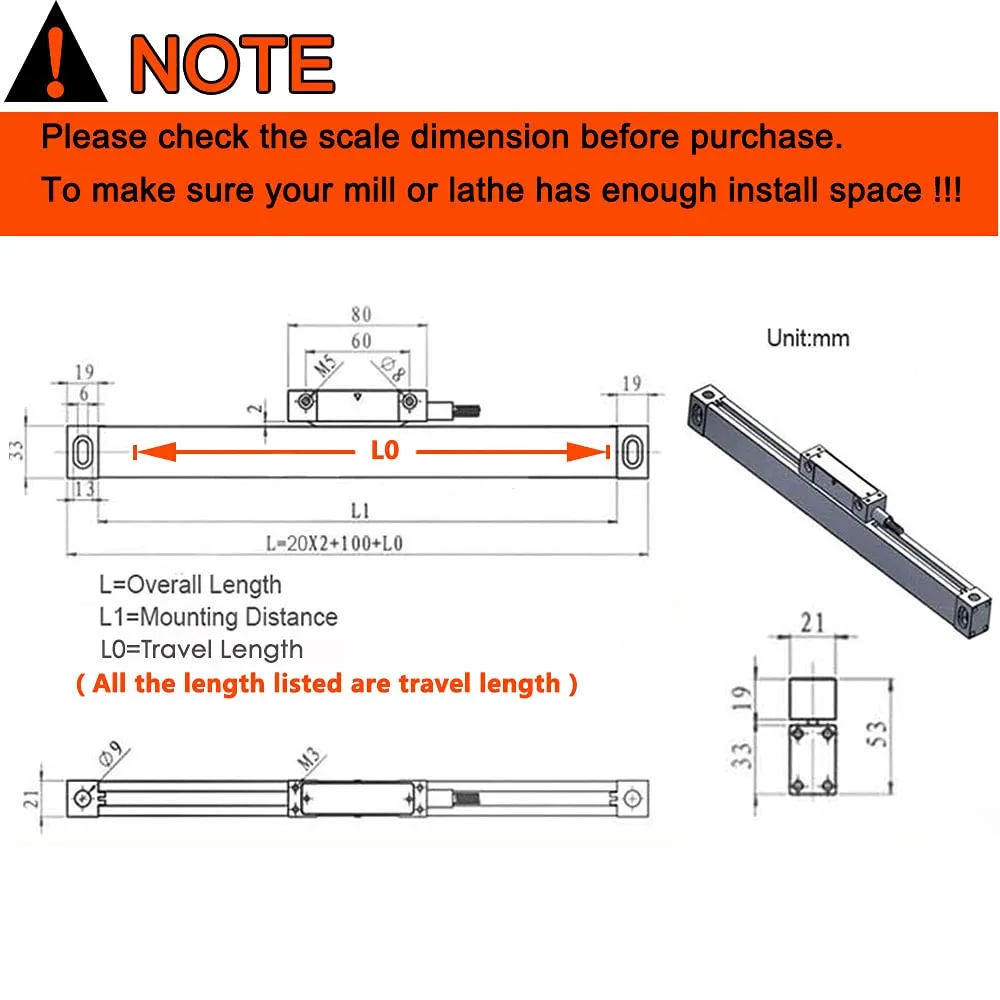

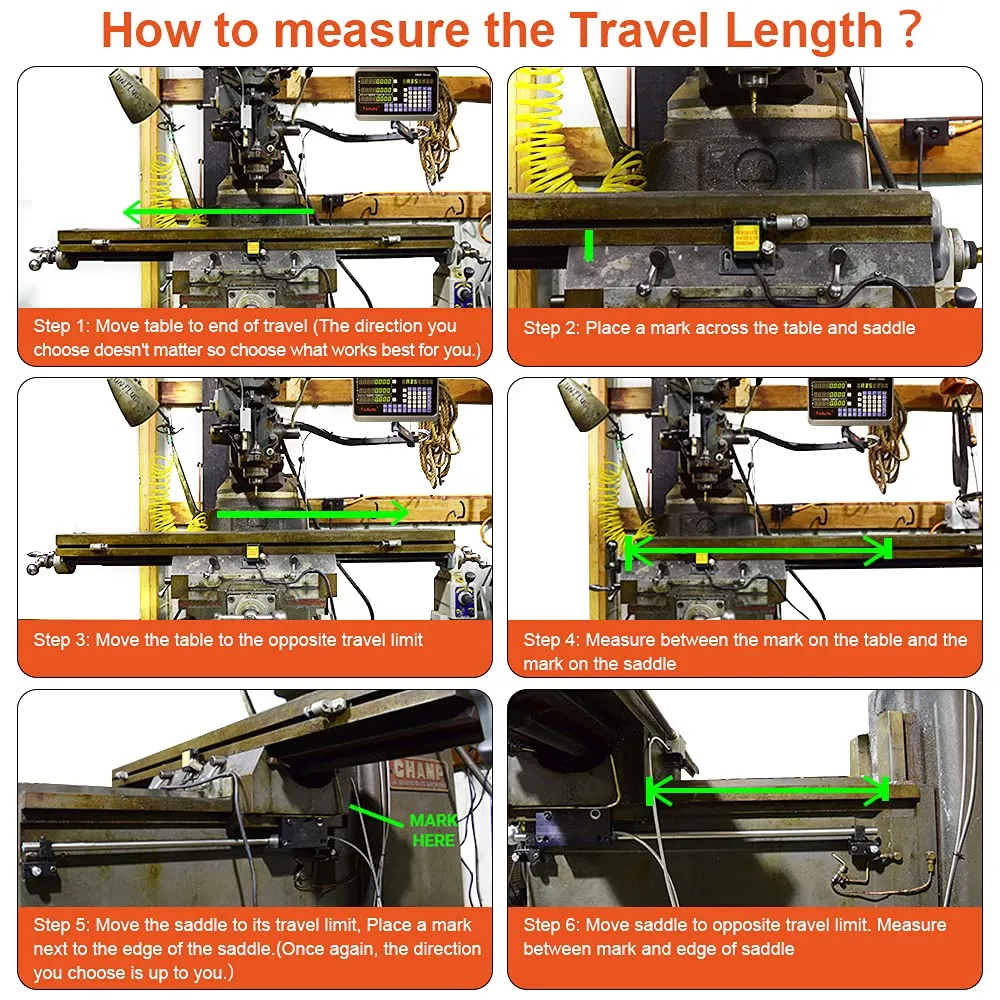

- 【TRAVEL LENGTH】The optical linear scale travel length : 150mm (6") . Total length=travel length 140mm(5.5”) . Travel length ONLY comes in 50mm increment ( 50/100/150....1000MM) Note : You will only receive 1pc 150mm Linear Scale when you select this option.
- 【HIGH PERFORMANCE】Measurement accuracy of the linear sensor can be accurate to 5 micron(0.005mm / 0.0002") to reduce working errors.

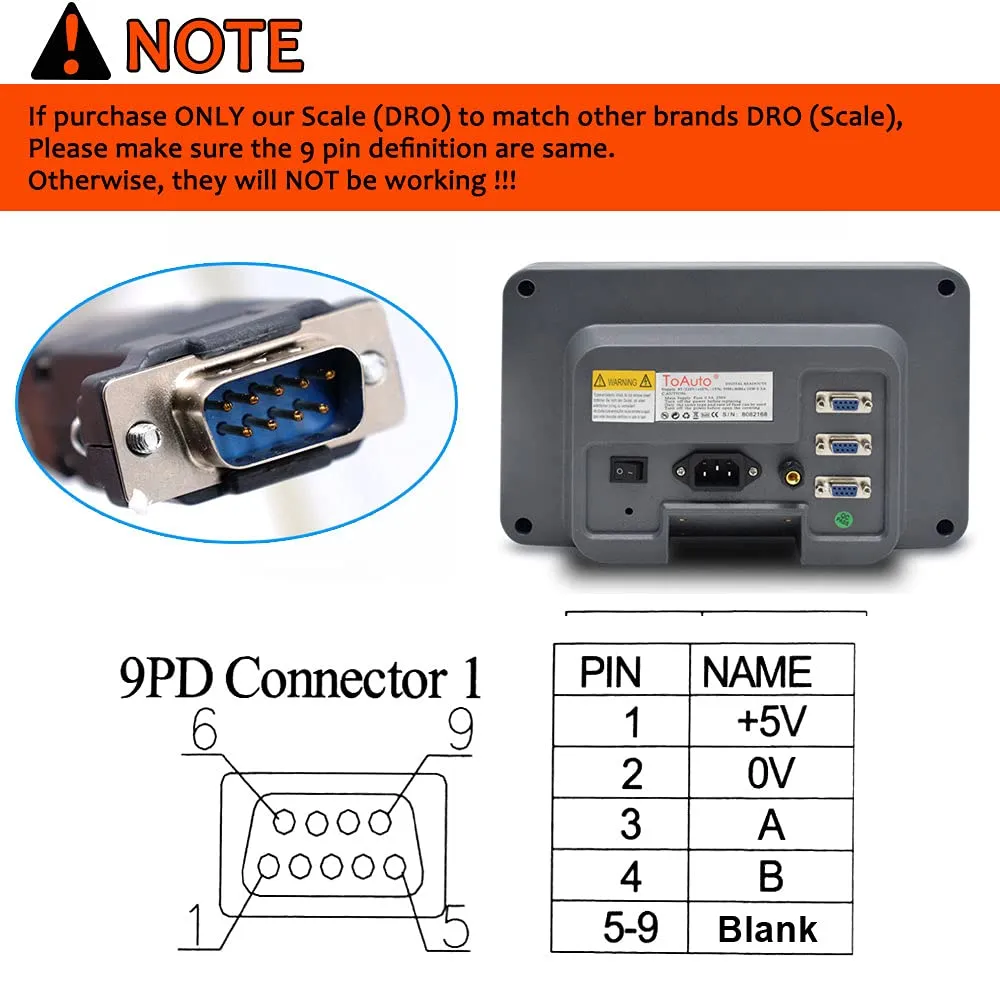

- 【INTERFACE&SIGNAL CABLE】TTL Square wave input signal through DB9 (RS232) interface with 9pins, default 3meter signal cable applies multilayer shielded wire steel and metal shell protection. If you need longer cable ,please contact us to get the best price .

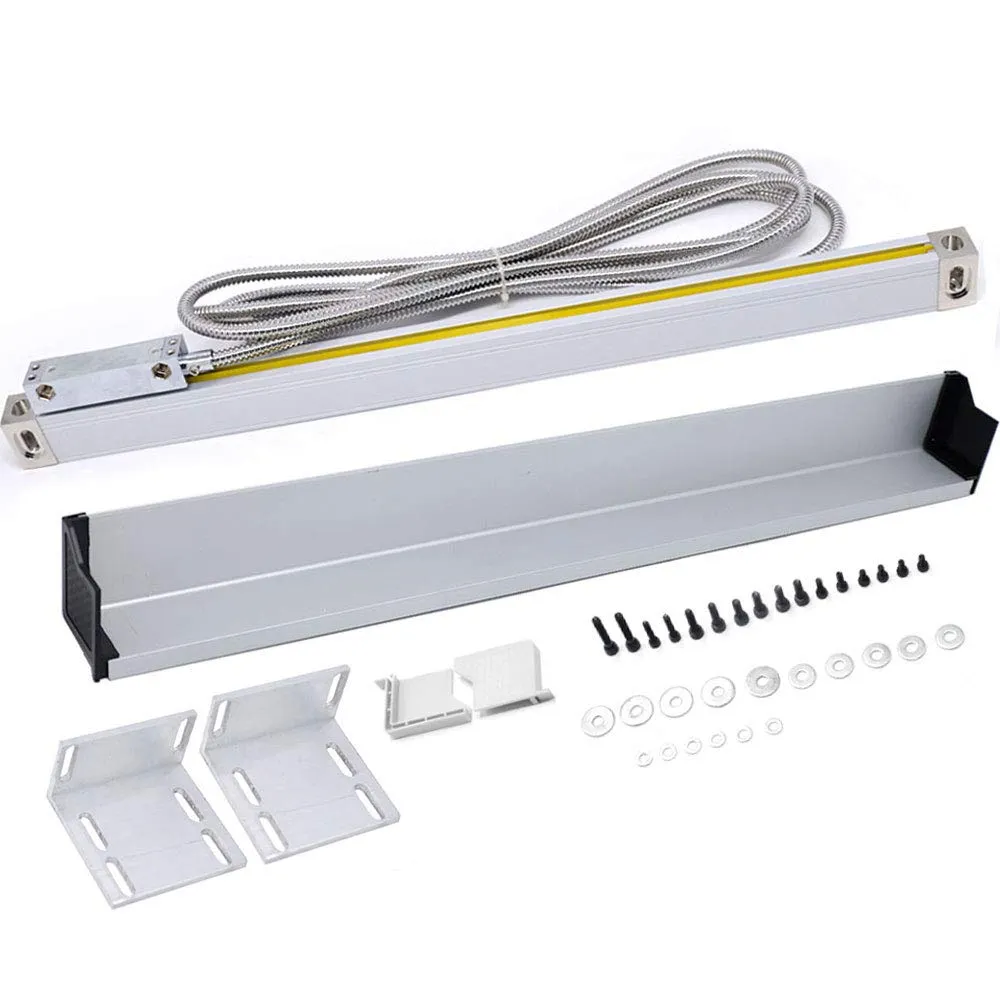

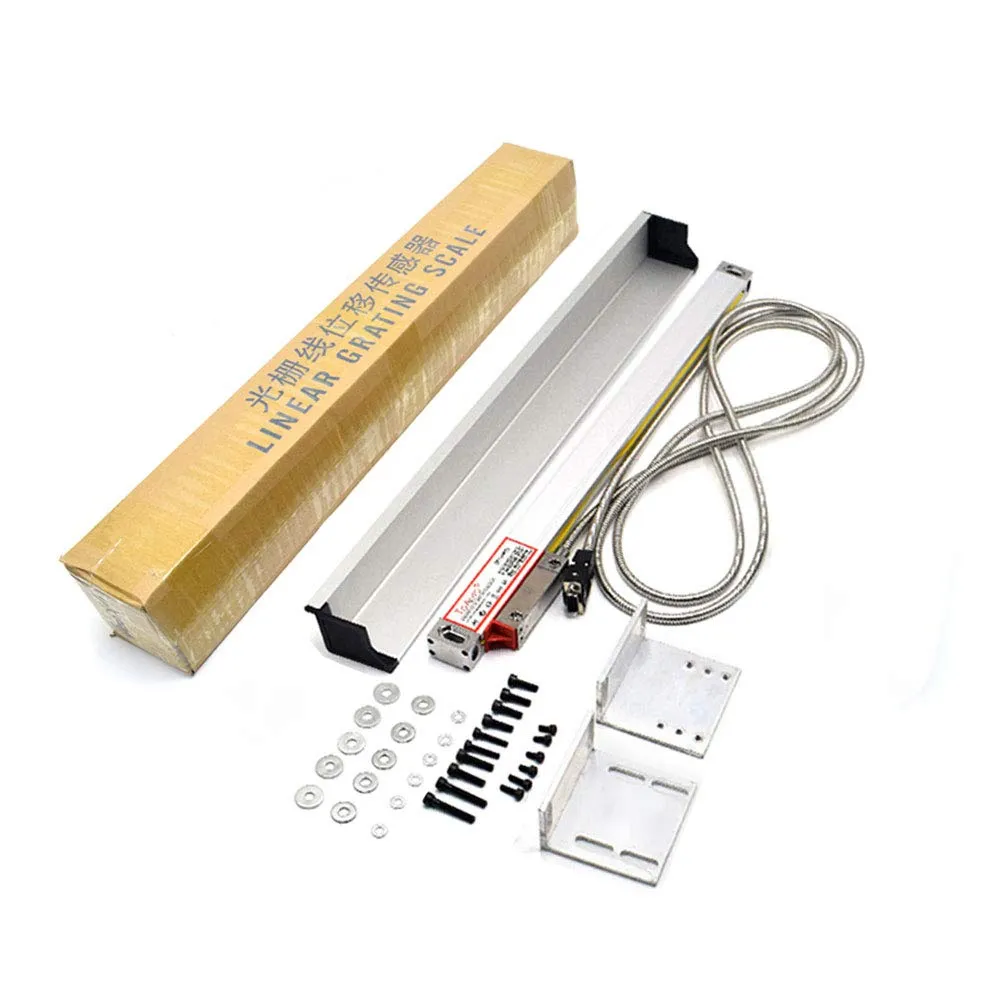

- 【FULL MOUNTING KIT】The package include 1pc 400mm linear scale , 1pc L type mounting plate, 1pc scale cover and some screws, easy installation.
- 【All Products will be provided for lifetime technical support.
Supply Voltage range : AC 80V~260V; 50~60Hz，US Plug
- Package Dimensions : 15.24 x 4.49 x 4.37 inches; 3.04 Pounds
- Date First Available : March 5, 2021
- Manufacturer : TOAUTO
- Country of Origin : China
